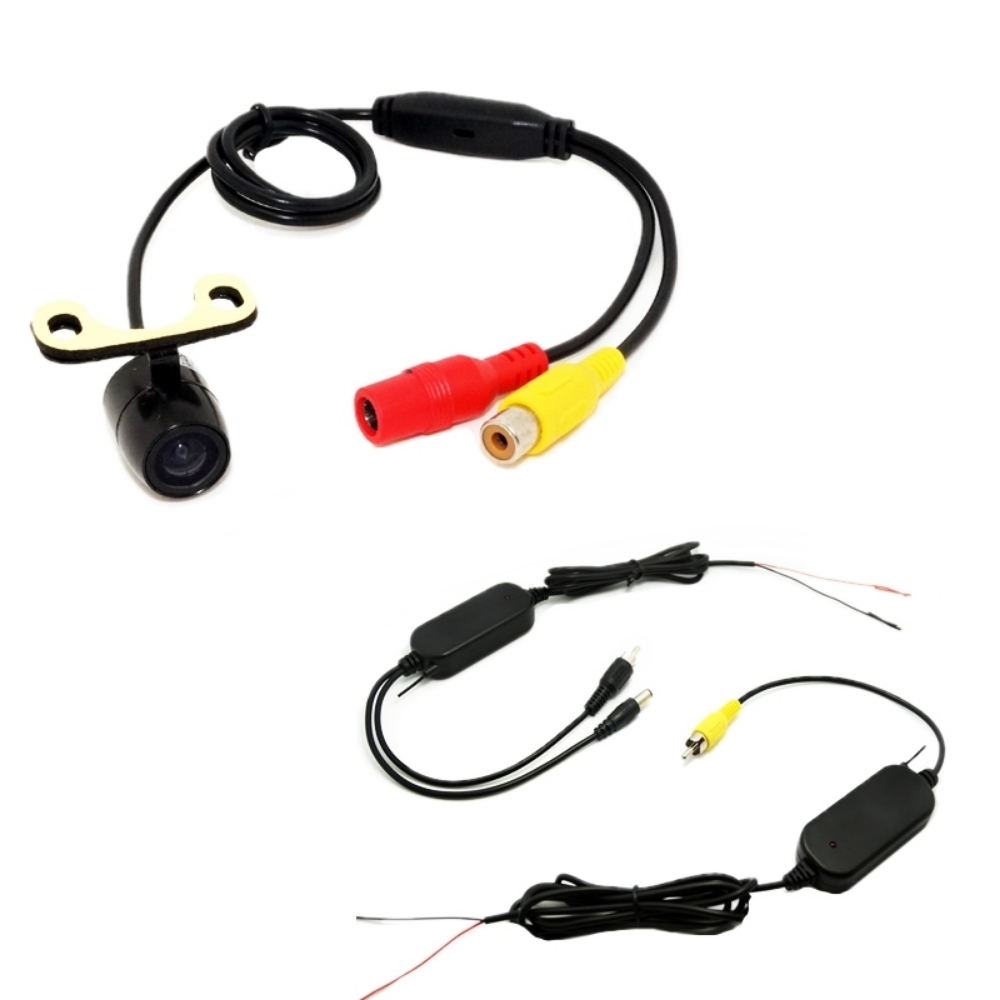

2.4 Ghz Wireless RCA Video Transmitter & Receiver Kit Specification:
Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation)
Work Range: Up to about 80m(Hollowness)
Connects to rear-view camera and front video screen or dvd player
Fit all RCA composite video connections
Transmitter/Receiver Cable Length:1.5m
Convert any reversing camera with a standard RCA connector into a wireless camera with this universal transmitter and receiver kit.
Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.
The transmitter also includes a handy pass through for the power so you can connect it inline with your camera.
Wireless transmitter with male RCA plug and male 3.5mm power plug for supplying power to the camera.
Wireless receiver with male RCA plug for connection to monitor.
CCD Wide angle 170 Degree Car Rear View Camera With Distance Grid Specifications:
Reverse Image/Mirror Image
Support Night Version,Use the original license plate lamp/light
Waterproof IP Rating: IP68
Distance reference grid line
TV System: NTSC/PAL(*if need PAL,please leave message to us)
Horizontal Resolution(TV lines):480TV Lines
Current Consumption:Max 120mA
Working temperature:-20Cбу~70Cбу,Max Rh95%
Storage temperature:-40Cбу~80Cбу,Max Rh95%
1 x 2.4Ghz Transmitter
1 x 2.4Ghz Receiver
1 x CCD Wide angle 170 Degree Car Rear View Camera With Distance Grid
1 x Power Cord
1 X RCA Cable
FAQ:How to Install a Camera with the Wireless Module:
Step 1: Take out your stock license plate light at the back of your car.
Step 2: Fix the camera to where the stock license plate light was.
Step 3: Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
Step 4: Connect the wireless module (transmitter) to your camera via the two cables - yellow plug for AV output and black plug for power
Step 5: Connect the wireless module (transmitter) to the reverse light of your car to get the power - red wire for positive and black wire for negative
Step 6: Connect the wireless module (receiver) to your car monitor - yellow plug for AV input.
Step 7: Connect the wireless module (receiver) to your car battery or cigarette lighter to get the power - red wire for positive and black wire for negative
Step 8: You will see the images when your car is in reverse shift.
